Eglobal High standard Consumer Electronics Desktops for intel core i7 5500U all in one mini computers hot laptop gaming pc
2,994.23 د.إ – 3,094.14 د.إ
CompareDescription
Product Description
-
Product Highlight
-Dual Gigabit RJ45 LAN, SD card reader, Optical and can add 2 RS232 COM ports.
-One embedded SIM card slot for 3G/4G Module for option. -Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design. -Fanless system without cooling fan, no any noise, work as long as 24 hours. -Low consumption TDP only 15W, save much energy and eco-friendly. -Can stand up by free bracket or can be mounted back of monitor or wall. -Can install 2xMSATA SSD+2.5” SATA HDD together. -Support 2 HDMI dual display output synchronously, 4K HD player.
|
Basic Information:
|
||
|
CPU
|
Onboard Intel Core i7-5500u / Intel Core i7-5550u
|
|
|
TDP
|
Theoretically max 15W, Real use max 8.7W
|
|
|
Motherboard
|
170 x 170mm customized size
|
|
|
BOIS
|
AMI BIOS, ACPI supported
|
|
|
Chipset
|
Intel Broadwell
|
|
|
Memory
|
2 x SO-DIMM DDR3L Slot
Support 4GB/8GB/16GB Dual Channel, DDR3L 1333/1600 LPDDR 1333 /1600 |
|
|
OS
|
Windows 7/Windows 8/Windows 10/Linux
|
|
|
PXE
|
YES
|
|
|
Audio
|
ALC892 chip, 6 channel sound
Intel Lynx Point-LP HDA |
|
|
Network
|
Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC
10/100Mbps/1000Mbps BaseT LAN |
|
|
Video
|
Intel® HD Graphics 5500 / Intel® HD Graphics 6000
|
|
|
Input/output port
|
||
|
Switch
|
1 x Power On/Off Switch
|
|
|
Power
|
1 x DC In
|
|
|
LED
|
1 x LED
|
|
|
USB
|
4 x USB2.0, 4 x USB3.0
|
|
|
SD Card
|
1 x SD Card Reader
|
|
|
Optical
|
1 x Optical
|
|
|
Display
|
2 x HDMI
|
|
|
LAN
|
2 x RJ45 Giga LAN
|
|
|
Audio
|
1 x MIC, 1 x SPK
|
|
|
Others
|
1 x embedded SIM card slot onboard(optional)
2 x RS232 COM(optional V7-5500UC model) |
|
|
Storage
|
||
|
MSATA
|
2 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
|
|
|
SATA
|
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
|
|
|
Wi-Fi
|
||
|
Module
|
1 x mini PCIE-half port for Wi-Fi module
1 x mini PCIE-full port for Wi-Fi/3G/4G module |
|
|
Antenna
|
2 x inner RF cables and 2 x external antennas
|
|
|
Power and Working Environment
|
||
|
Input
|
DC100-240V AC/50-60Hz
|
|
|
Output
|
DC +12V~+19V, recommend 12V/5A
|
|
|
Operating Temperature
|
0/70 Centigrade(32F~140F)
|
|
|
Storage Temperature
|
-20/+80 Centigrade
|
|
|
Relative Humidity
|
0%~90% (non-condensing)
|
|
|
Product Dimension & Details
|
||
|
Size
|
210*170*45mm
|
|
|
Weight
|
Net 1.8kg, Gross 2.7kg
|
|
|
Shell
|
Brushed Black color aluminum alloy
|
|
|
Cooling Mode
|
Fanless
|
|
|
Function
|
Calls on function automatically, Wake-On-LAN
|
|
|

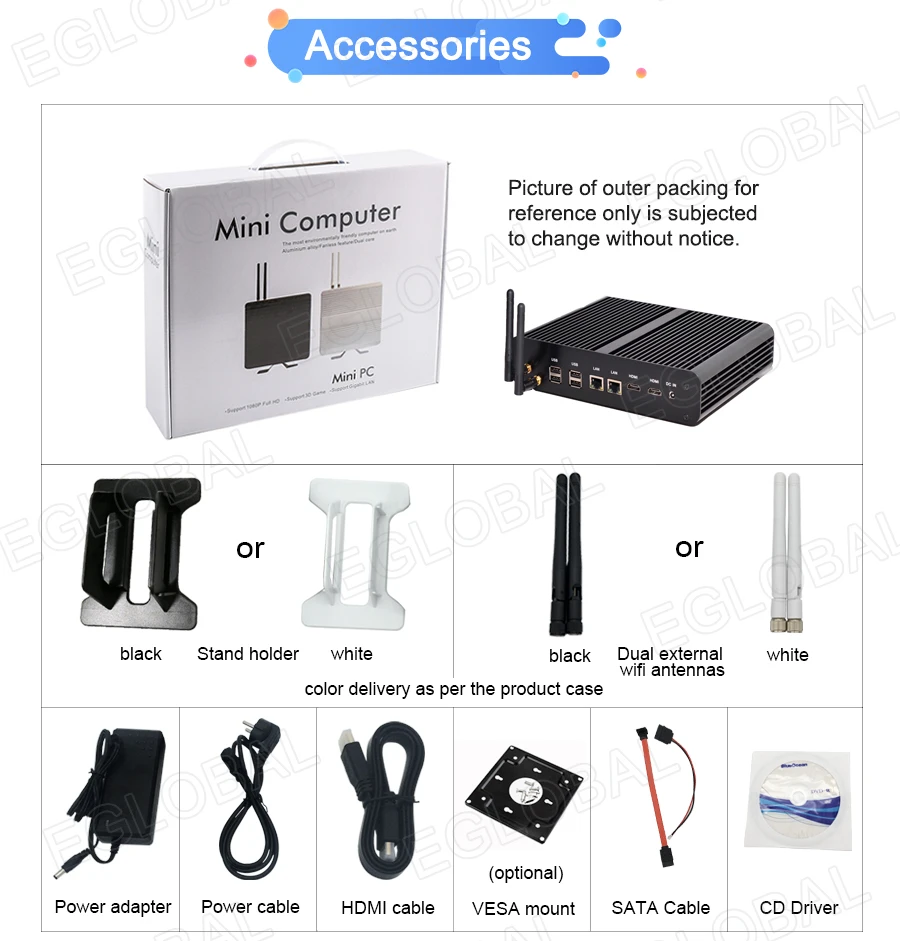

Package Content
|
||
|
Standard
|
1xMini PC, 1x Power Adapter, , 1xPower Cord, 1xScrews Bag, 1xStand Holder
|
|
|
Optional
|
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount
|
|
CPU information:
Model: V7-5500U
CPU: Onboard Intel Core i7 5500U 2.4GHz Max 3.0MHz(Turbo boost Technology) Dual Core Four Threads
CPU: Onboard Intel Core i7 5500U 2.4GHz Max 3.0MHz(Turbo boost Technology) Dual Core Four Threads
Model: V7-5550U
CPU: Onboard Intel Core i7 5550U 2.0GHz Max 3.0MHz(Turbo boost Technology) Dual Core Four Threads
Model: V7-5500UC / V7-5550UC
Add 2 RS232 COM ports on the computer.
Packing&Shipping
Additional information
| Memory Capacity | 8GB, 4GB |
|---|---|
| Color | Black |
